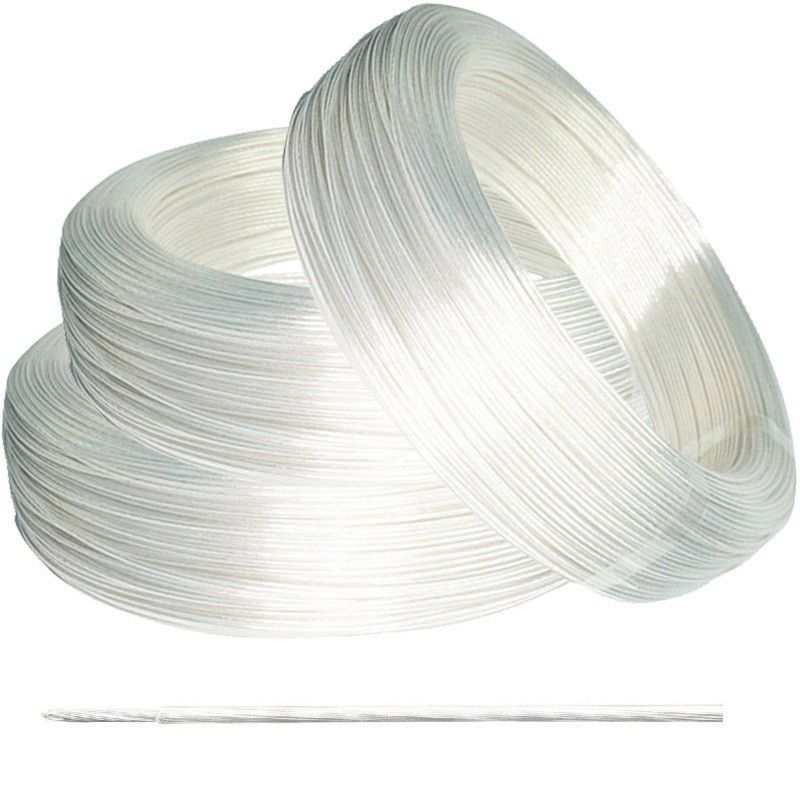

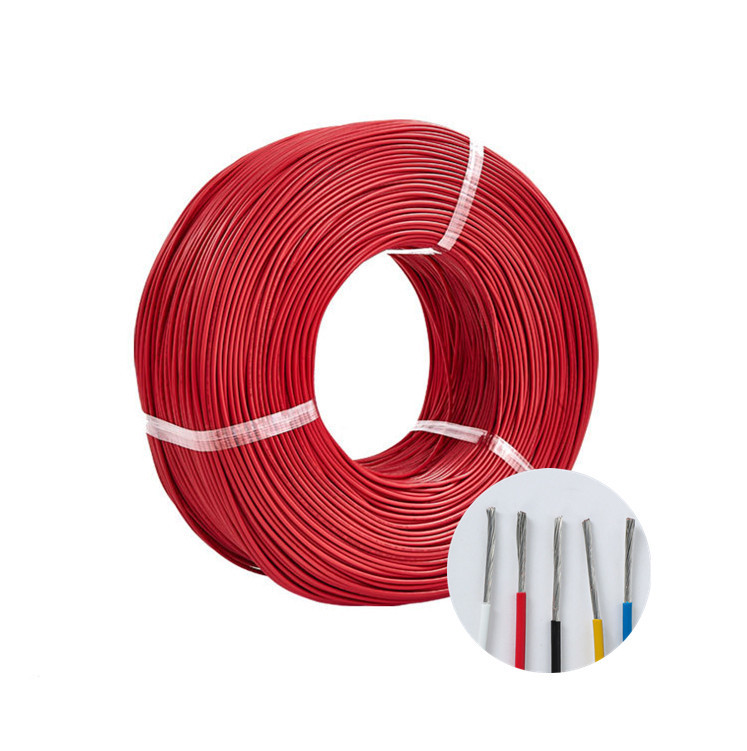

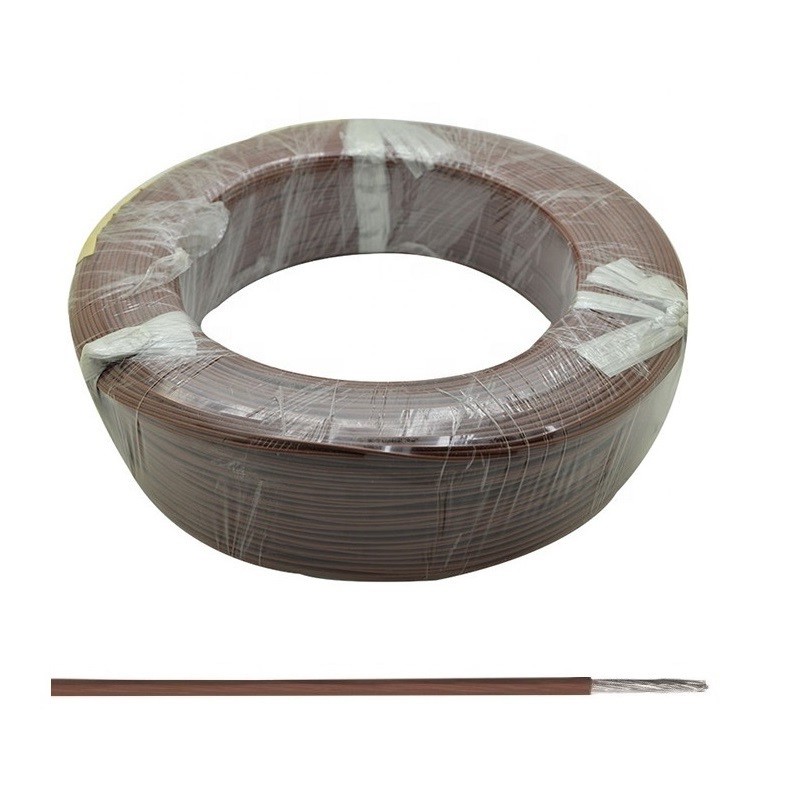

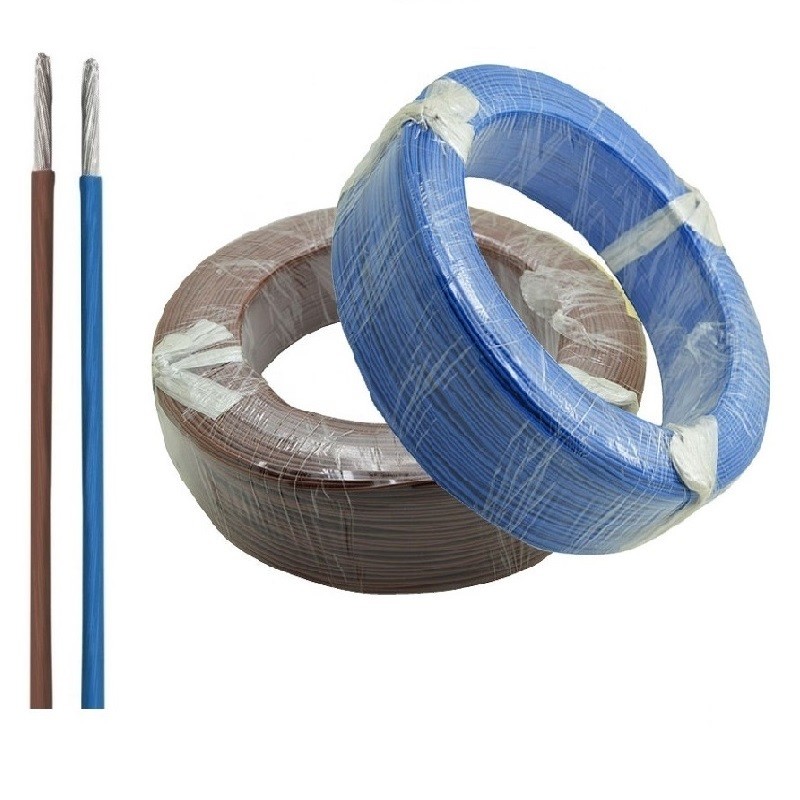

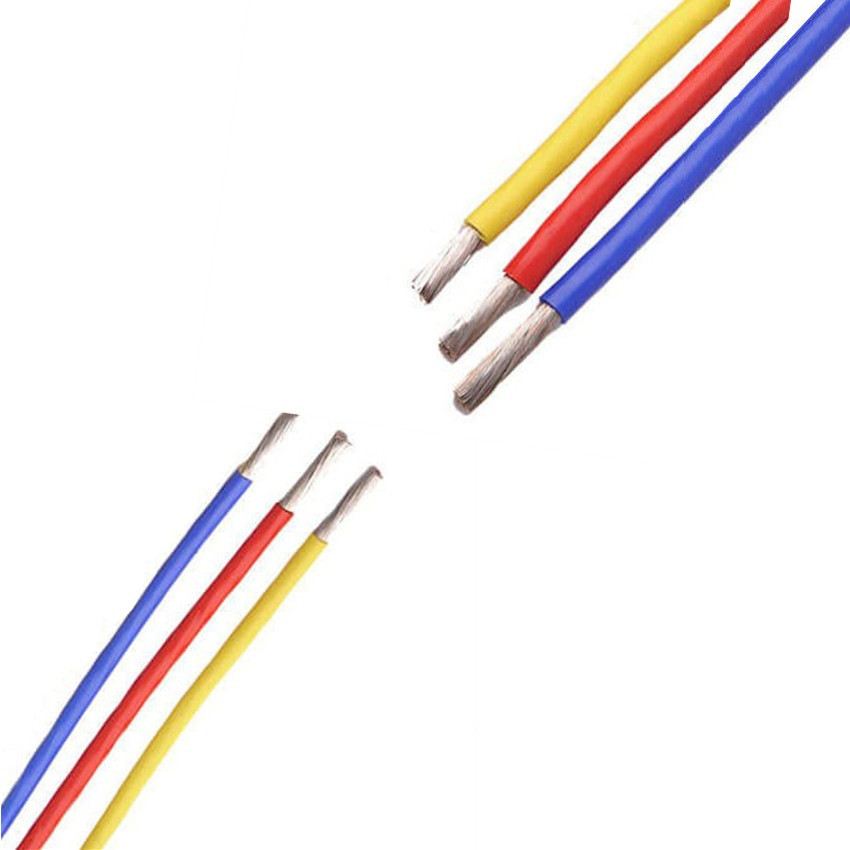

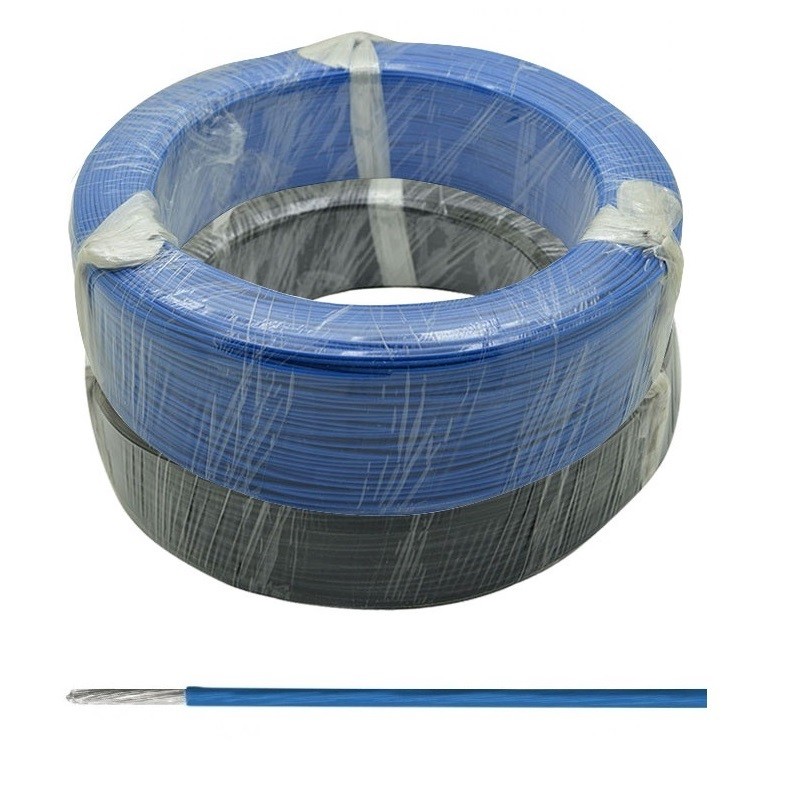

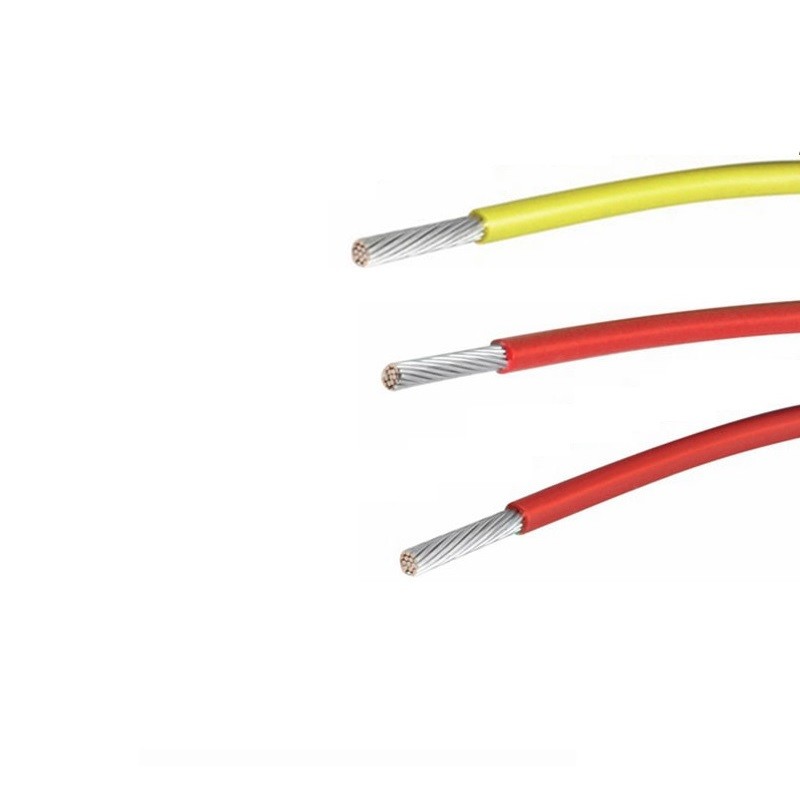

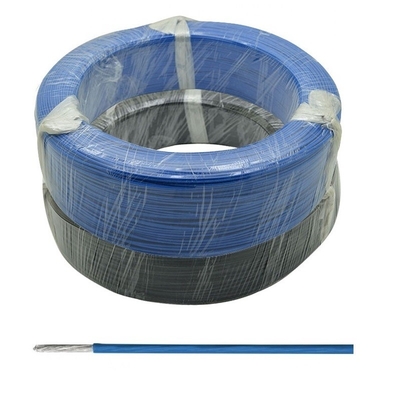

Heat Resist Tin Plated Tefzel Wire 12 14 16 18 20 22 Gauge
About Tefzel Wire:
Tefzel wire, made from ethylene-tetrafluoroethylene (ETFE), is known for its excellent chemical resistance, high-temperature tolerance, and electrical insulation properties
Tefzel wire offers excellent resistance to chemicals, high temperatures, and abrasion. It is also known for its low coefficient of friction, high dielectric strength, and good electrical properties.
Application: Aerospace,Automotive: ,Industrial Equipment:,Medical Devices,Telecommunications,Robotics,Marine Applications,Renewable Energy etc.
Properties
| Insulation | Tefzel (ETFE) insulation |
| Conductor | Tin plated (Solid or Stranded) |
| Operating temperature | -65℃~+150℃ |
| Rated voltage | AC600V or below |
| Insulation resistance(20 ℃) | not less than 100 m Ω. Km |
| Voltage test (AC) | insulation wire 2200V/1min, shielding wire 1500V/30s no breakdown |
| Color | Red, yellow, blue, white, black, transparent, brown, green, yellow, green |
| Wire gauge | Section area (mm2) |
Conductor construction piece/diameter (mm) |
Reference OD (mm) |
Max. Conductor resistance at 20℃ |
Reference weight kg/km |
||
| FF40-1 | FF40P11-1 | FF40-1 | FF40P11-1 | ||||
| 26awg | 0.14mm2 | 19/0.1 | 1.02 | 1.52 | 136 | 2.66 | 6.64 |
| 24awg | 0.2mm2 | 19/0.12 | 1.14 | 1.64 | 90.4 | 3.82 | 8.17 |
| 22awg | 0.4/0.3mm2 | 19/0.16 | 1.32 | 1.85 | 53.1 | 5.48 | 10.4 |
| 20awg | 0.6/0.5mm2 | 19/0.2 | 1.52 | 2.02 | 32.4 | 7.98 | 13.5 |
| - | 0.75mm2 | 19/0.23 | 1.7 | 2.2 | 24.6 | 9.99 | 16.1 |
| 18awg | 1mm2 | 19/0.26 | 1.8 | 2.3 | 20.4 | 11.7 | 18.1 |
| 16awg | 1.2mm2 | 19/0.28 | 2.01 | 2.51 | 16.6 | 14.8 | 21.8 |
| - | 1.5mm2 | 19/0.32 | 2.25 | 2.75 | 12.7 | 18.2 | 25.9 |
| 14awg | 2mm2 | 19/0.36 | 2.36 | 2.86 | 10 | 22.2 | 30.3 |
| - | 2.5mm2 | 37/0.37 | 2.78 | 3.31 | 7.43 | 30.4 | 39.9 |
| 12awg | 3mm2 | 37/0.32 | 2.9 | 3.43 | 6.63 | 33.6 | 43.4 |
| - | 4mm2 | 37/0.37 | 3.38 | 3.91 | 4.88 | 45.4 | 56.7 |
| 10awg | 5mm2 | 37/0.4 | 3.53 | 4.06 | 4.13 | 52.2 | 64 |
1. With 22 years of industry expertise,Shenzhou Special Cable specializes in manufacturing hightemperature wires (PTFE/FEP/PFA/ETFE Wire) and ultra-flexible cables (TPE/TPU/PUR/TPV cable).
2. We offer end-to-end customization from material selection to mass production, with products featuring an operating range of -100℃ to 500℃ and over 20 million bend cycles, ideal for robotics, medical devices, automotive wiring and industrial automation.
3. We serve global clients with fast response (24-hour solution design), flexible production quantity (min. 50m orders)
Rigorous Testing, Guaranteed Quality
Global Exhibitions, Professional Recognition
We have consistently participated in global exhibitions including Middle East Electricity Dubai, China-ASEAN Expo, and India Power-Gen etc., showcasing our high-temperature and ultra-flexible cable solutions.
These engagements help us refine products and services to meet diverse international market demands.
Expert Team, Professional Service
We boast industry-leading interdisciplinary teams: production with 15-year experienced technicians, R&D led by polymer experts, multilingual sales with 24/7 response, and ISO-certified management.
Our coordinated approach delivers one-stop solutions from development to delivery.
Free Samples | Technical Support | 24 hours Online Consultation
